Description

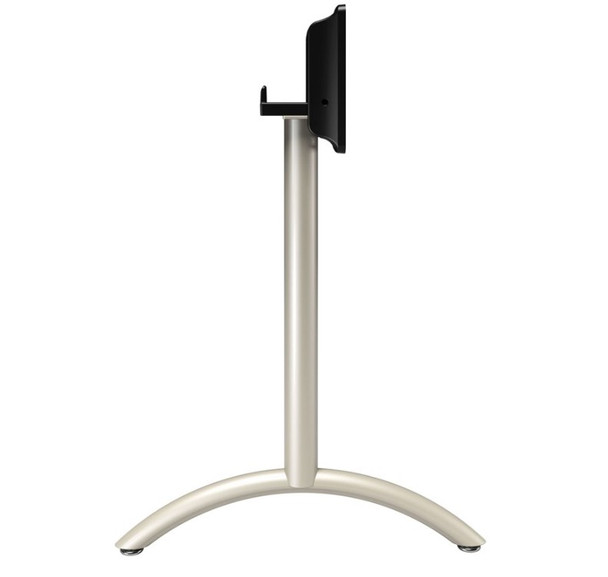

When you need tables that flip, the 776X Arch Base with the Flip-Top mechanism offers you a new look as well as flexibility. An optional handle release is available. The handle release mounts on the underside of the table and is centered on the table length close to the edge of the table. The single handle allows for one individual to release both mechanisms simultaneously and flip the table up and down.
- Height: 27-3/4"; 40-3/4"
- Construction: 1 Piece Welded Construction with flip mechanism mechanically attached to the table base
- Finish: Black (standard)
- Lead Time: Standard Black finish - 2-3 weeks. Require 3 to 4 week lead time for twelve (12) powder coat finishes and 4 weeks for (1) premium finish
- Column diameter: 2"
- Base Spread: 16", 22", 26"
- Mounting plate: Injection Molded, Aluminum and Steel; requires (8) #12-14 screws
- Leveler foot allows additional 1/4-20 x 5/8" upward height adjustment for uneven floors
- 330 lbs. vertical load rating per base
- Sold as single
- Note: Adjustable Spring Clip only available with 27-3/4" standard height base
| Base Spread | Weight | Recommended Max. Top Depth |
| 16" | 10 lbs. | 16"-22" |
| 22" | 11 lbs. | 23"-30" |
| 26" | 12 lbs. | 30"-36" |
Specifications
Color/Finsh : |
Black (standard), Black wrinkle, Champagne, Dark tone, Gray (Medium), Inner tone light, Light brown (Sand), Light tone, Medium tone, Silver, Sky White, White (Soft) |
Column Tubing : |
14 gauge wall |
Construction : |
1 piece welded construction |
Cutting : |
Can be custom cut at factory |
Diameter : |
2" |
Function/Application : |
Table Bases |
Height : |
27-3/4", 40-3/4" |
Material : |
Metal / Steel |
Mounting-Style : |
Folding Mechanism |
Base Spread : |
16", 22", 26" |
Height Adjustment : |
1-3/8" |
Load Rating : |
330 lbs (150kg) static vertical load |
Packing Units: |
Single |
Shape : |
Round |
