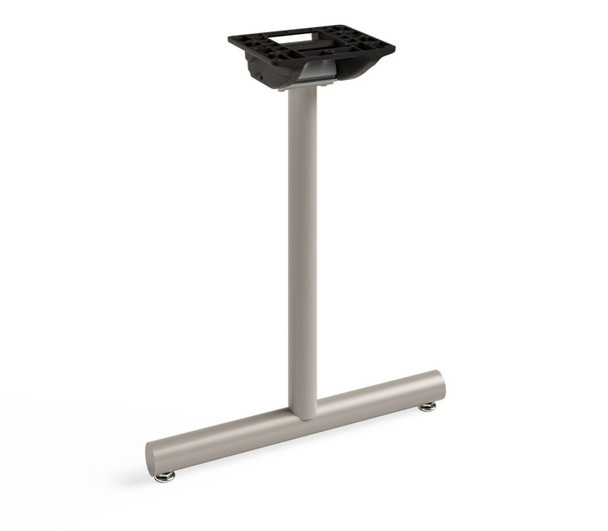

Folding T-Base With Welded Construction
(No reviews yet)
Write a Review
- SKU:
- 773X
- MPN:
- 773X
Description
When you need table bases that fold, we offer you a great looking, high quality and economical table base.
- Height: 27-3/4"; 40-3/4"
- Construction: 1 Piece Welded Construction
- Folding Mechanism is mechanically attached to the table base.
- Finish: Black (standard)
- Lead Time: All finish require 2-1/2 to 3 week lead time
- Column diameter: 2"; Base diameter: 2"
- Base Spread: 16", 18", 22", 26", 32"
- Mounting plate: Injection Molded, Aluminum and Steel; requires (8) #12-14 screws
- Leveler foot allows additional 1-1/4" upward height adjustment for uneven floors
- 330 lbs. vertical load rating per base
- Pricing is per base.
| Base Spread | Weight | Recommended Max. Top Depth |
| 16" | 10 lbs. | 16" - 17" |
| 18" | 10 lbs. | 18" - 22" |
| 22" | 11 lbs. | 23" - 30" |
| 26" | 12 lbs. | 30" - 36" |
| 32" | 16 lbs. | 36" - 42" |
Specifications
Color/Finsh : |
Black (standard), Black wrinkle, Champagne, Dark tone, Gray (Medium), Inner tone light, Light brown (Sand), Light tone, Medium tone, Silver, Sky White, White (Soft) |
Column Tubing : |
14 gauge wall |
Construction : |
1 piece welded construction |
Cutting : |
Can be custom cut at factory |
Diameter : |
2" |
Function/Application : |
Table Bases |
Height : |
27-3/4", 40-3/4" |
Material : |
Metal / Steel |
Mounting-Style : |
Folding Mechanism |
Base Spread : |
16", 18", 22", 26", 32" |
Height Adjustment : |
1-1/4" |
Load Rating : |
330 lbs (150kg) static vertical load |
Packing Units: |
Single |
Shape : |
Round |
